The Harsh-Duty models have been created to address today’s challenges of brine solutions used with increasing frequency throughout the US and abroad. Standard-length runways with (2) 9,000 lb. Swing air jacks and stainless steel turnplates. New easy-to-use control console and closed front design.



Features

• The Harsh-Duty racks feature: Zinc-rich primer base coat
• Powder top-coat
• Stainless steel slip plate top surfaces and turnplates
• Pre-galvanized and powder coated thresholds
• Epoxy caulking in joints in key visual areas
• 8,000 lbs. Capacity
• Integrated Air Line Ki
• Louvered Locks and Ramps
• Umbilical Covering (Protects Air/Hydraulic Line Damage)
• (2) Movable Work Steps
• Flush Slip Plates, and Extra Wide Ramps



Technical

Dimensions (L x W x H)	242x35x31	inch
Extension height	98	inch
Power supply	3 hp, 208-230 VAC, 60 Hz, 1 ph	V/Hz/A
Track width	26	inch
Weight approx.	6030	lbs
Load carrying capacity	18000	lbs



Options

1-20-3870-1	Drive-Thru Kit for L451 & L454	Login for pricing	Add to cart
1-L454JTPRB	Harsh Duty, 4-Post, Closed Front, 18,000lbs Capacity, 177" 2WA WB, (2) 9,000lbs Swing Jacks, Stainless turnplates, air line kits	Login for pricing	Add to cart
1-L454LJTPRB	Harsh Duty, 4-Post, Closed Front, 18,000lbs Capacity, 211" 2WA WB, (2) 9,000lbs Swing Jacks, Stainless turnplates, air line kit.	Login for pricing	Add to cart
1-L454LJTPRR	Harsh Duty, 4-Post, Closed Front, 18,000lbs Capacity, 211" 2WA WB, (2) 9,000lbs Swing Jacks, Stainless turnplates, air line kit.	Login for pricing	Add to cart
1-L454LT-ISPRB	Harsh Duty, 4-Post, Closed Front, FIA, Inflation Station, PowerSlide, 18,000lbs Capacity, 211" 2WA WB, (2) 9,000lbs Swing Jacks,	Login for pricing	Add to cart
1-L454LT-ISPRR	Harsh Duty, 4-Post, Closed Front, FIA, Inflation Station, PowerSlide, 18,000lbs Capacity, 211" 2WA WB, (2) 9,000lbs Swing Jacks,	Login for pricing	Add to cart
1-L454LT-PSPRB	Harsh Duty, 4-Post, Closed Front, PowerSlide, 18,000lbs Capacity, 211" 2WA WB, (2) 9,000lbs Swing Jacks, PowerSlide turnplates,	Login for pricing	Add to cart
1-L454LT-PSPRR	Harsh Duty, 4-Post, Closed Front, PowerSlide, 18,000lbs Capacity, 211" 2WA WB, (2) 9,000lbs Swing Jacks, PowerSlide turnplates,	Login for pricing	Add to cart
1-L454T-ISPRB	Harsh Duty, 4-Post, Closed Front, 18,000lbs Capacity, FIA, Inflation Station, PowerSlide, 177" 2WA WB, (2) 9,000lbs Swing Jacks,	Login for pricing	Add to cart
1-L454T-ISPRR	Harsh Duty, 4-Post, Closed Front, 18,000lbs Capacity, FIA, Inflation Station, PowerSlide, 177" 2WA WB, (2) 9,000lbs Swing Jacks,	Login for pricing	Add to cart
1-L454T-PSPRB	Harsh Duty, 4-Post, Closed Front, PowerSlide, 18,000lbs Capacity, 177" 2WA WB, (2) 9,000lbs Swing Jacks, PowerSide turnplates, a	Login for pricing	Add to cart
1-L454T-PSPRR	Harsh Duty, 4-Post, Closed Front, PowerSlide, 18,000lbs Capacity, 177" 2WA WB, (2) 9,000lbs Swing Jacks, PowerSide turnplates, a	Login for pricing	Add to cart



Accessories

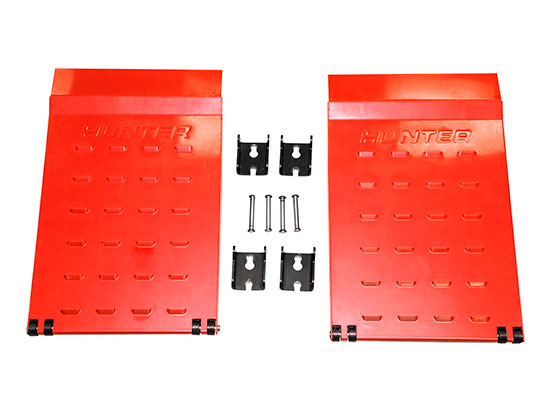

1-20-3870-1	Drive-Thru Kit for L451 & L454	Login for pricing	Add to cart

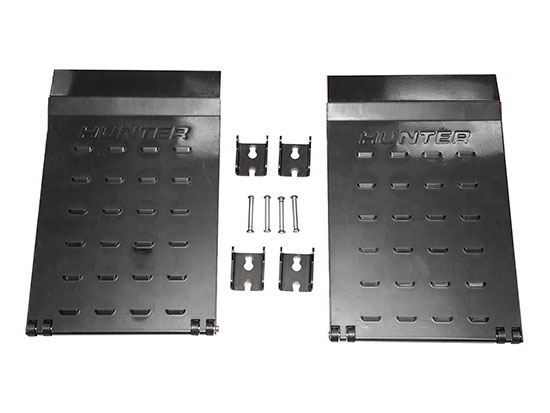

1-20-3870-1BLK	Drive-Thru Kit for L451 & L454 Black	Login for pricing	Add to cart
